GYFTY non-metal layer stranded loose tube optic cable

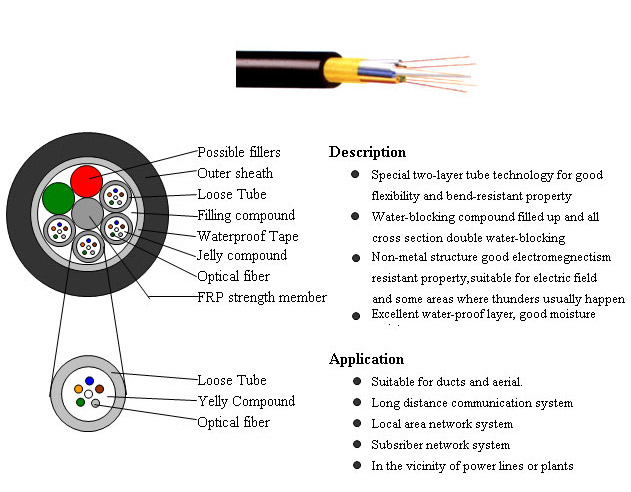

Product Photo
  Product Information

Mechanical & Environmental characteristics
ITEM
CHARACTERISTICS
Operation temperature
-200C~+600C
Storage temperature
-400C~+600C
Sheath Material
P:PE; L:LSZH; or other

Part
Number
Fiber
Count
Outside
Diameter
(mm)
Stranded
Units
Cable
Weight
(kg/km)
Tensile Load
Crush Load
Bend Radius
S
(N)
L
(N)
S
(N)
L
(N)
S
(mm)
L
(mm)
GYFTY04XXP-BK

4

10.0

5

95.0
1500
600
1000
300
20D
10D
GYFTY06XXP-BK

6

10.0

5

95.0
1500
600
1000
300
20D
10D
GYFTY08XXP-BK

8

10.0

5

95.0
1500
600
1000
300
20D
10D
GYFTY12XXP-BK

12

10.0

5

95.0
1500
600
1000
300
20D
10D
GYFTY24XXP-BK

24

10.0

5

95.0
1500
600
1000
300
20D
10D
GYFTY36XXP-BK
36

10.0

5

95.0
1500
600
1000
300
20D
10D
GYFTY48XXP-BK
48

11.5

6

116.0
1500
600
1000
300
20D
10D
GYFTY72XXP-BK
72

11.5

6

116.0
3000
1000
1000
300
20D
10D
GYFTY96XXP-BK
96

13.6

8

149.0
3000
1000
1000
300
20D
10D
GYFTY144XXP-BK
144

17.5

12

267.0
3000
1000
1000
300
20D
10D

Note:GYFTY denotes outdoor cable type;XX denotes fiber P/N code(09: SM; 62: 62.5/125um; 50: 50/125um) ;
           P denotes PE sheath( L: LSZH) ; BK denotes black outer sheath;

Optical Characteristics
Glass Type
62.5/125um
62.5/125um
50/125um
50/125um
50/125um
SM(G652)
Grade B
Grade A
Grade B
Grade A
OM3
P/N Code(X)
62B
62A
50B
50A

OM3
09
Operating
Wavelength
850/1300nm
850/1300nm
850/1300nm
850/1300nm
850/1300nm
1310/1550nm
Bandwidth
(MHz.km)
160/500
200/600
200/500
400/800
1500/500
-
Attenuation
(dB/km)
3.50/1.50
3.00/1.00
3..50/1.50
3.00/1.00
2.70/0.80
0.45/0.30
Link Length
For 1000M
200/500
275/550
500/550
550/550
10004/600
-
Link Length
For 10G
-
-
-
-
300/
-

Colour Code
BL- Blue
BR- Brown
RE- Red
PU- Purple
OR- Orange
GY- Grey
BK- Black
PI- Pink
GR- Green
WH- White
YE- Yellow
AQ- Aqua

Note:
1.The colour arrangement of optical fiber is specified in the fiber colour code
2.S: short term; L: long term; L.T: loose tube
3.Crush load: N/100mm; D: cable diameter
4.GY: outdoor cable; F: FRP central strength; T: jelly compound; Y: PE outer sheath
