Duplex & Simplex Armored Optic Fiber Cable

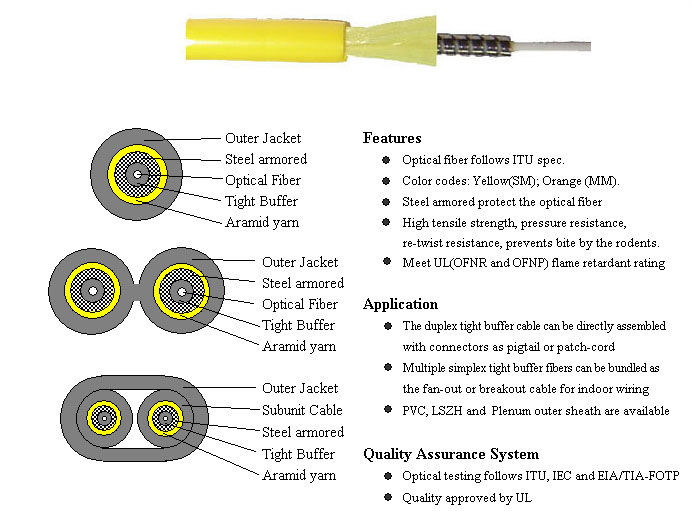

Product Photo
  Product Information
Mechanical & Environmental characteristics

ITEM
CHARACTERISTICS
Operation temperature
-200C~+600C
Storage temperature
-400C~+850C
Riser UL/cUL Rated
Type OFNR/OFN FT4
Plenum UL/cUL Rated
Type OFNP/OFN FT6
Jacket Material
PVC or LSZH or Plenum

Part
Number
Fiber
Count
Outside
Diameter
(mm)
T.B
Diameter
(mm)
Cable
Weight
(kg/km)
Tensile Load
Crush Load
Bend Radius
S
(N)
L
(N)
S
(N)
L
(N)
S
(mm)
L
(mm)
LX28SAXXR-CL
1
2.8
0.9
15
750
300
1000
500
20D
10D
LX30SAXXR-CL
1
3.0
0.9
15
750
300
1000
500
20D
10D
LX28ZAXXR-CL
2
2.8*2
0.9
30
750
300
1000
500
20D
10D
LX30ZAXXR-CL
2
3.0*2
0.9
30
750
300
1000
500
20D
10D
LX30OAXXR-CL
2
7.2*4.2
0.9
35
1000
500
1500
800
20D
10D


Note: LX denotes Lancall logo; XX denotes fiber P/N code(09: SM; 62: 62.5/125um; 50: 50/125um) ;
        24 denotes cable diameter ; SA denotes simplex armour  ; ZA denotes zipcord duplex armour ;
        R denotes Riser ( L: LSZH; P: Plenum) ; CL denotes the color of outer sheath;


Optical Characteristics

Glass Type
62.5/125um
62.5/125um
50/125um
50/125um
50/125um
SM(G652)
Grade B
Grade A
Grade B
Grade A
OM3
P/N Code(X)
62B
62A
50B
50A
OM3
9
Operating
Wavelength
850/1300nm
850/1300nm
850/1300nm
850/1300nm
850/1300nm
1310/1550nm
Bandwidth
(MHz.km)
160/500
200/600
200/500
400/800
1500/500
-
Attenuation
(dB/km)
3.50/1.50
3.00/1.00
3..50/1.50
3.00/1.00
2.70/0.80
0.45/0.30
Link Length
For 1000M
200/500
275/550
500/550
550/550
10004/600
-
Link Length
For 10G
-
-
-
-
300/-
-

Colour Code
BL- Blue
BR- Brown
RE- Red
PU- Purple
OR- Orange
GY- Grey
BK- Black
PI- Pink
GR- Green
WH- White
YE- Yellow
AQ- Aqua

Note:
1.See details of fibre specification in relevant Corning literature
2.The colour identification of the buffer layer complies with the standard colour identification set in
   GB13993.3-2001 Standard
3.S: short term; L: long term; T.B: tight buffer
4.Crush load: N/100mm; D: cable diameter
