Optical Characteristics

Glass Type		62.5/125um		62.5/125um		50/125um		50/125um		50/125um	SM(G652)
		Grade B		Grade A		Grade B		Grade A		OM3
P/N Code(X)		62B		62A		50B		50A		OM3	09
Operating Wavelength		850/1300nm		850/1300nm		850/1300nm		850/1300nm		850/1300nm	1310/1550nm
Bandwidth (MHz.km)		160/500		200/600		200/500		400/800		1500/500	-
Attenuation (dB/km)		3.50/1.50		3.00/1.00		3..50/1.50		3.00/1.00		2.70/0.80	0.45/0.30
Link Length For 1000M		200/500		275/550		500/550		550/550		10004/600	-
Link Length For 10G		-		-		-		-		300/-	-

Colour Code

BL- Blue			BR- Brown			RE- Red				PU- Purple
OR- Orange			GY- Grey			BK- Black				PI- Pink
GR- Green			WH- White			YE- Yellow				AQ- Aqua

Note:

1.See details of fibre specification in relevant Corning literature

2.The colour identification of the buffer layer complies with the standard colour identification set in

GB13993.3-2001 Standard

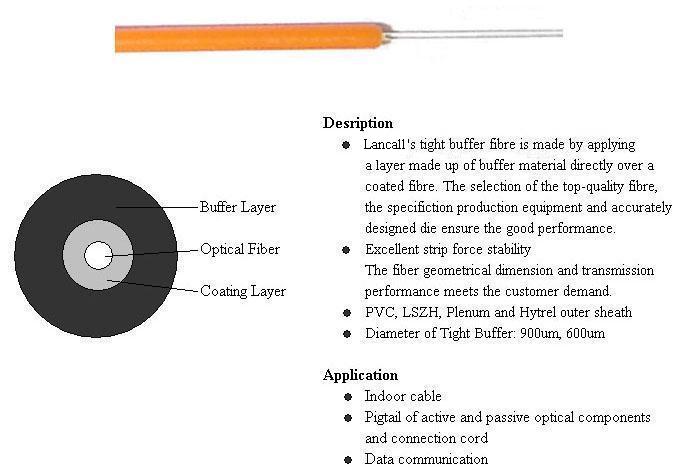

3.S: short term; L: long term; T.B: tight buffer

4.Crush load: N/100mm; D: cable diameter
